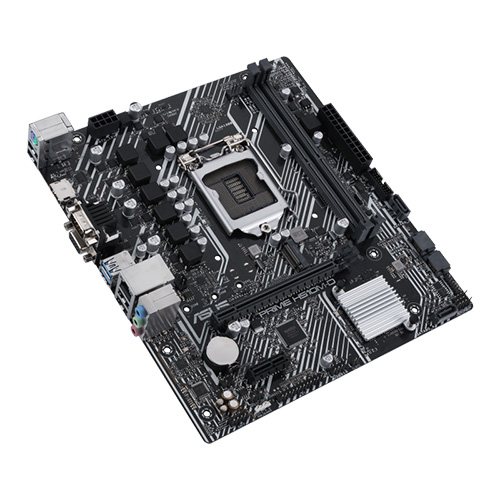

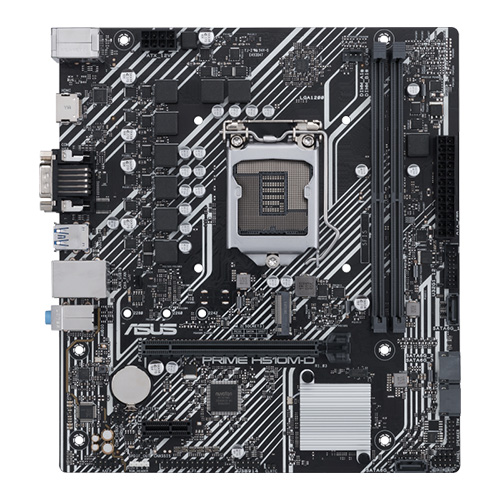

ASUS PRIME H510M-D Intel 10th and 11th Gen Micro ATX Motherboard

Computer Components > Motherboard > ASUS (INTEL)

ASUS PRIME H510M-D Intel 10th and 11th Gen Micro ATX Motherboard

Model: PRIME H510M-D
Intel LGA 1200 socket: 11th and 10th Gen Processors
PCIe 4.0, 32Gbps M.2, 1Gb Ethernet & USB 3.2 Gen 1
5X Protection III, LPT header & RGB header
PCH heatsink and Fan Xpert

Available EMI Offer

TK 8500

~~TK 9220~~

Brand:

Asus

Quantity

ADD TO CART

ORDER NOW

Product Details

Basic Information
Supported CPU	Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel H510 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	microATX 22.6cm x 20.3cm
Audio	Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features: - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers
Expansion Slots
PCI	1 x PCIe 4.0/3.0 x16 slot 1 x PCIe 3.0 x1 slot
M.2 Socket	Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Memory
Type	2DDR4 (Dual Channel)
Supported Memory	64GB
Maximum Memory	DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture
Graphics
Graphics	1 x D-Sub 1 x HDMI 2.0
Connector & Ports
HDMI	1 x HDMI 2.0
D-Sub (s)	1 x D-Sub port
USB (s)	Rear USB:Total 6 ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB:Total 4 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports
Supported Storage	M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
Audio	Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC: - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features: - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers (A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.)

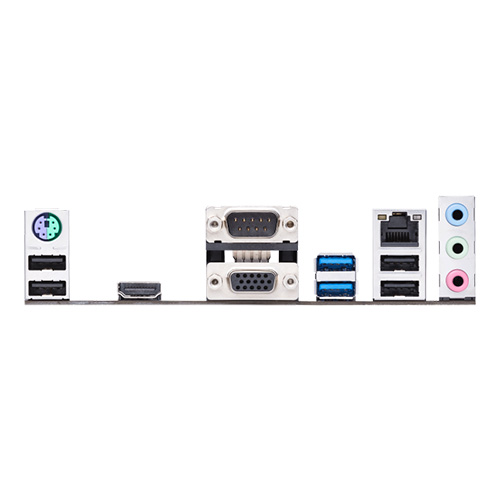

Internal I/O Ports	Fan and Cooling related: 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related: 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related: 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB: 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous: 1 x RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports: 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x D-Sub port 1 x HDMI port 1 x Intel I219-V 1Gb Ethernet port 3 x Audio jacks 1 x COM port 1 x PS/2 Keyboard/Mouse combo port
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Warranty Information
Manufacturing Warranty	03 Years Warranty
