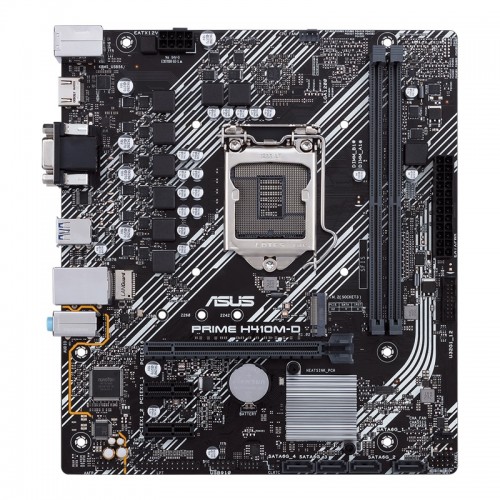

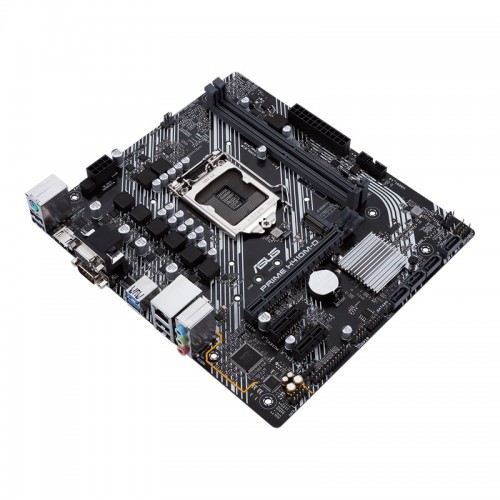

Asus Prime H410M-D Intel 10th Gen Micro-ATX Motherboard

Computer Components > Motherboard > ASUS (INTEL)

Asus Prime H410M-D Intel 10th Gen Micro-ATX Motherboard

Model: Prime H410M-D
Ready for 10th Gen Intel Core processors
5X Protection III
4 x SATA 6Gb/s port(s)
M.2, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A

Available EMI Offer

TK 8500

~~TK 9110~~

Brand:

Asus

Quantity

ADD TO CART

ORDER NOW

Product Details

Specification

Basic Information
Supported CPU	Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel H410
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )
Audio	Realtek ALC887/897 7.1-Channel High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers
Expansion Slots
PCI	Intel 10th Gen Processors: 1 x PCIe 3.0 x16 (x16 mode) Intel H410 Chipset: 2 x PCIe 3.0 x1
M.2 Socket	1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
Memory
Type	Dual Channel Memory Architecture
Slots	2 x DIMM
Supported Memory	DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem
Maximum Memory	Max. 64GB
Graphics
Graphics	Integrated Graphics Processor
Connector & Ports
D-Sub (s)	1 x D-Sub
DVI-D (s)	1 x DVI-D
Supported Storage	4 x SATA 6Gb/s port(s)
Internal I/O Ports	1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector
TPM (Trusted Platform Module )	N/A
Warranty Information
Manufacturing Warranty	3 years
