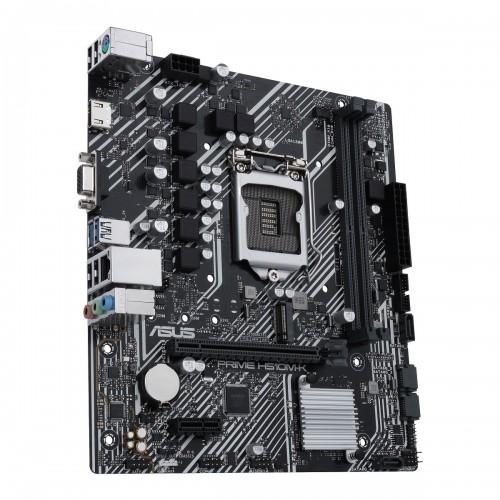

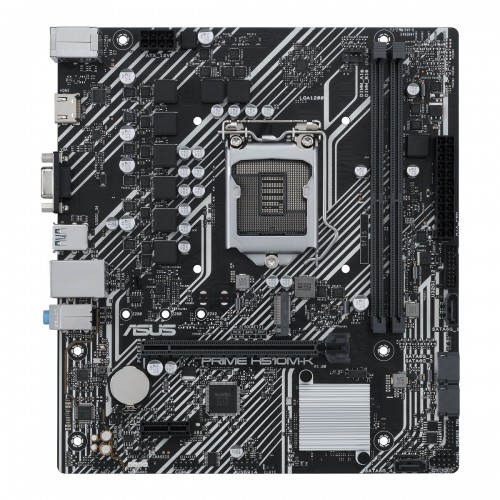

Asus Prime H510M-K Intel 10th and 11th Gen Micro-ATX Motherboard

Computer Components > Motherboard > ASUS (INTEL)

Asus Prime H510M-K Intel 10th and 11th Gen Micro-ATX Motherboard

Model: Prime H510M-K
Ready for 11th and 10th Gen Intel Processors
5X Protection III
Ultrafast Connectivity
Comprehensive Cooling

Available EMI Offer

TK 8000

~~TK 8790~~

Brand:

Asus

Quantity

ADD TO CART

ORDER NOW

Product Details

Basic Information
Supported CPU	Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel H510
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	microATX: 22.6cm x 20.3cm
Expansion Slots
PCI	Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel 10th Gen processors support PCIe 3.0 x16 Intel H510 Chipset 1 x PCIe 3.0 x1 slot
M.2 Socket	Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Memory
Type	DDR4
Slots	2 x DIMM
Supported Memory	DDR4 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memork Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	Max. 64GB
Graphics
Graphics	1 x D-Sub 1 x HDMI 1.4 / 2.0

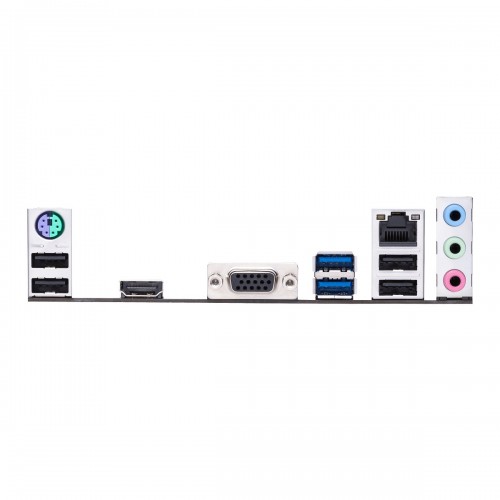

Connector & Ports
HDMI	1 x HDMI 1.4
D-Sub (s)	1 x D-Sub
USB (s)	Rear USB: Total 6 ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB: Total 4 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports
LAN Port (s)	1 x Intel I219-V 1Gb Ethernet ASUS LANGuard
Supported Storage	Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H510 Chipset M.2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
Audio	ALC887/ 897 Realtek ALC897/ 887 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Dedicated audio PCB layers
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Warranty Information
Manufacturing Warranty	3 years
