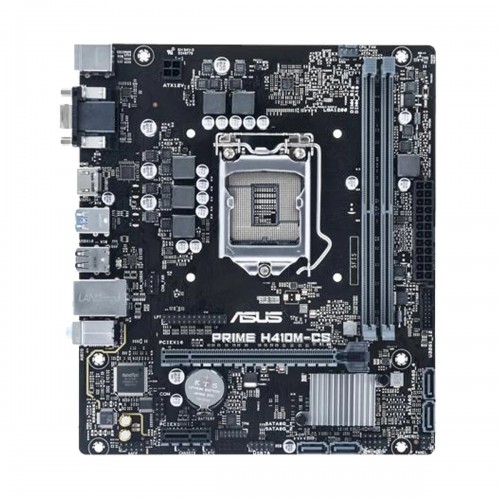

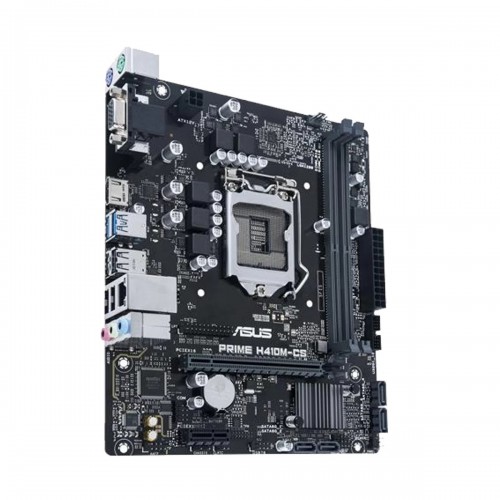

Asus Prime H410M-CS DDR4 10th Gen Intel 1200 Socket Micro ATX Motherboard

Computer Components > Motherboard > ASUS (INTEL)

Asus Prime H410M-CS DDR4 10th Gen Intel 1200 Socket Micro ATX Motherboard

Model: Asus Prime H410M-CS
Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
CHIPSET: Intel H410
LAN: Realtek RTL8111H
MEMORY: 2 x DIMM slots with Max. 64GB

Available EMI Offer

TK 7800

~~TK 8360~~

Brand:

Asus

Quantity

ADD TO CART

ORDER NOW

Product Details

Specification

Basic Information
Supported CPU	Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset	Intel H410
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor: 8.9 inch x 8.0 inch
Expansion Slots
PCI	No
M.2 Socket	No
Memory
Type	Non-ECC, Un-buffered Memory
Slots	2 x DIMM
Supported Memory	10th Gen Intel Core i9/i7 CPUs support: 2933/ 2800/ 2666/ 2400/ 2133 Intel Core i5/i3/Pentium/Celeron processors: 2933/ 2800/ 2666/ 2400/ 2133 MHz Supports Intel Extreme Memory Profile (XMP) OptiMem
Maximum Memory	64GB
Graphics
Graphics	Integrated Graphics Processor 1 x D-Sub 1 x HDMI 1.4b

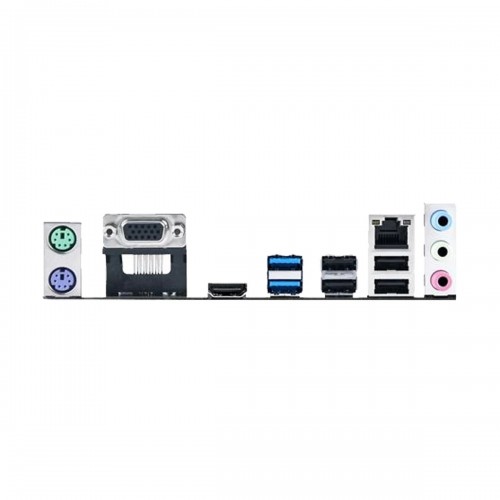

Connector & Ports
HDMI	1 x HDMI 1.4b
D-Sub (s)	1 x D-Sub
USB (s)	Rear USB Port ( Total 4 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)
LAN Port (s)	Realtek RTL8111H
Supported Storage	Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports Intel® H410 Chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 4 x SATA 6Gb/s port(s)
Audio	Realtek ALC887 7.1-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors
Internal I/O Ports	1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector
Warranty Information
Manufacturing Warranty	3 Years
