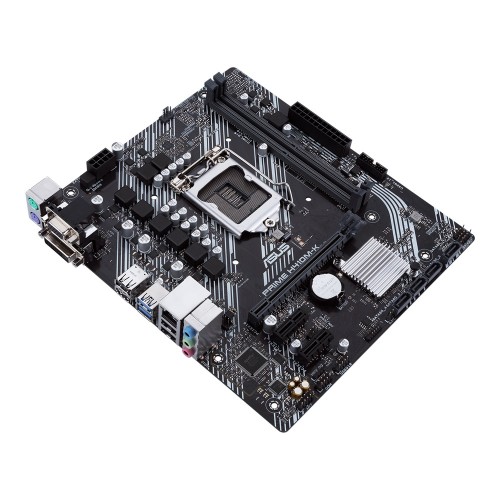

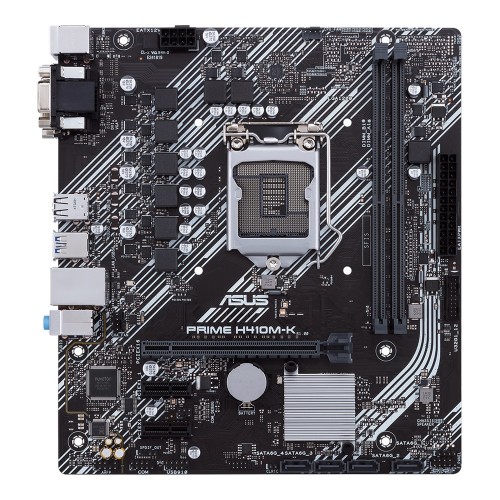

Asus Prime H410M-K Intel 10th Gen Micro-ATX Motherboard


  • Model: Prime H410M-K
  • Ready for 10th Gen Intel Core processors
  • 5X Protection III
  • 4 x SATA 6Gb/s port(s)
  • 1 Gb Ethernet, USB 3.2 Gen 1 Type-A

TK 7600

TK 8140

Brand:

Asus




Product Details

Specification

Basic Information
Supported CPU Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel H410
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor
8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )
Audio Realtek ALC887/897 7.1-Channel High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- Audio Shielding
- Dedicated audio PCB layers
Expansion Slots
PCI Intel 10th Gen Processors: 1 x PCIe 3.0 x16 (x16 mode)
Intel H410 Chipset: 2 x PCIe 3.0 x1
Memory
Type Dual Channel Memory Architecture
Slots 2 x DIMM
Supported Memory DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
OptiMem
Maximum Memory Max. 64GB
Graphics
Graphics Integrated Graphics Processor
Connector & Ports
D-Sub (s) 1 x D-Sub
DVI-D (s) 1 x DVI-D
Supported Storage 4 x SATA 6Gb/s port(s)
Internal I/O Ports 1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector
Warranty Information
Manufacturing Warranty 3 years
