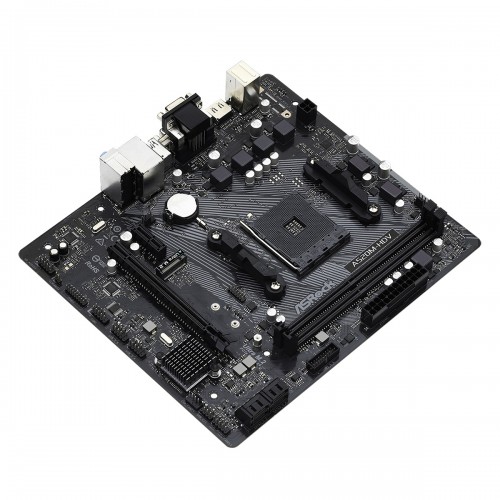

ASRock A520M-HDV Micro ATX AM4 Motherboard

Model: ASRock A520M-HDV
AMD AM4 socket: Ready for 3rd Gen AMD Ryzen Processors
Ultrafast connectivity
Ultrafast connectivity
Comprehensive cooling

Available EMI Offer

TK 6800

Brand:

ASRock

Quantity

ADD TO CART

ORDER NOW

Product Details

Specification

Basic Information
Supported CPU	Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors (3000 and 4000 Series Processors) 6 Power Phase design
Chipset	AMD A520
BIOS	128Mb AMI UEFI Legal BIOS with GUI support Supports "Plug and Play" ACPI 5.1 compliance wake up events Supports jumperfree SMBIOS 2.3 support CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment
Form Factor	Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm Solid Capacitor design
Expansion Slots
PCI	1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) 1 x PCI Express 3.0 x1 Slot
M.2 Socket	1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Memory
Type	Dual Channel Memory Architecture
Slots	2 x DIMM slots
Supported Memory	AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
Maximum Memory	64GB
Graphics
Graphics	Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU DirectX 12, Pixel Shader 5.0 Shared memory default 2GB. Max Shared memory supports up to 16GB. Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) Supports HDR (High Dynamic Range) with HDMI 2.1 Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port Supports Microsoft PlayReady
Max Shared Memory	16GB

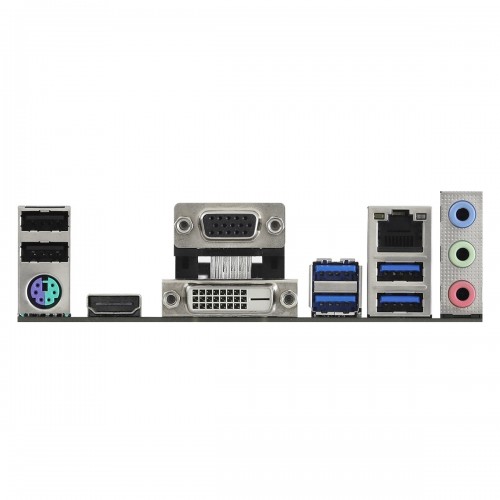

Connector & Ports
HDMI	1 x HDMI
D-Sub (s)	1 x D-Sub
DVI-D (s)	1 x DVI-D
USB (s)	2 x USB 2.0 Ports (Supports ESD Protection) 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
LAN Port (s)	PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE
Supported Storage	4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Audio	7.1 CH HD Audio (Realtek ALC887 Audio Codec) Supports Surge Protection
Internal I/O Ports	1 x COM Port Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)** 1 x 24 pin ATX Power Connector 1 x 4 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
TPM (Trusted Platform Module )	1 x SPI TPM Header
Warranty Information
Manufacturing Warranty	03 Years Warranty
