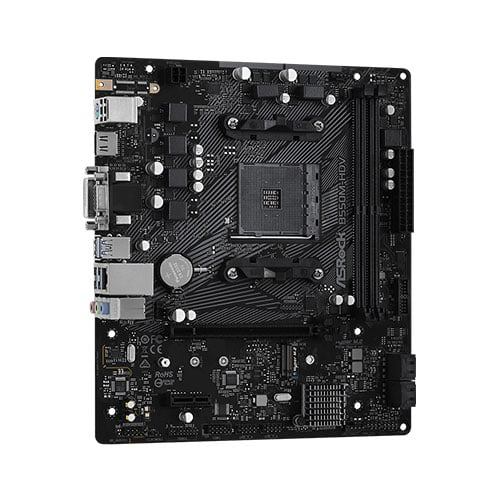

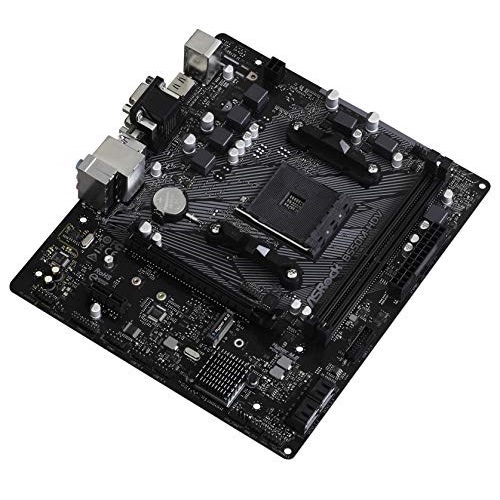

ASRock B550M-HDV DDR4 AMD Motherboard


  • Model: ASRock B550M-HDV
  • Supports 3rd Gen AMD AM4 Ryzen/ Future AMD Ryzen Processors
  • Supports DDR4 4733+ (OC)
  • 4 SATA3, 1 Hyper M.2
  • 6 Power Phase Design

TK 9000

Brand:

ASRock

Quantity




Product Details

Specification

Basic Information
Supported CPU Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors
6 Power Phase design
Chipset AMD B550
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment
Form Factor - Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
- Solid Capacitor design
Audio 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- Supports Surge Protection
Expansion Slots
M.2 Socket 1 x Hyper M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s)
Memory
Type DDR4
Slots AMD Ryzen series CPUs (Matisse)
- 1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode)
AMD Ryzen series APUs
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)
- 1 x PCI Express 3.0 x1 Slot
Supported Memory - Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series APUs support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
Maximum Memory Max. capacity of system memory: 64GB
Graphics
Graphics - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.**
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports Triple Monitor
- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.1
- Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
- Supports Microsoft PlayReady
Max Shared Memory 64GB
Connector & Ports
HDMI 1 x HDMI Port
D-Sub (s) 1 x D-Sub Port
DVI-D (s) 1 x DVI-D Port
USB (s) 2 x USB 2.0 Ports (Supports ESD Protection)
4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
LAN Port (s) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Supported Storage 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
Audio 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
Supports Surge Protection
Internal I/O Ports - 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
- 1 x COM Port Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Connector
- 1 x 4 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
TPM (Trusted Platform Module ) - 1 x SPI TPM Header
Warranty Information
Manufacturing Warranty 03 Years Warranty
