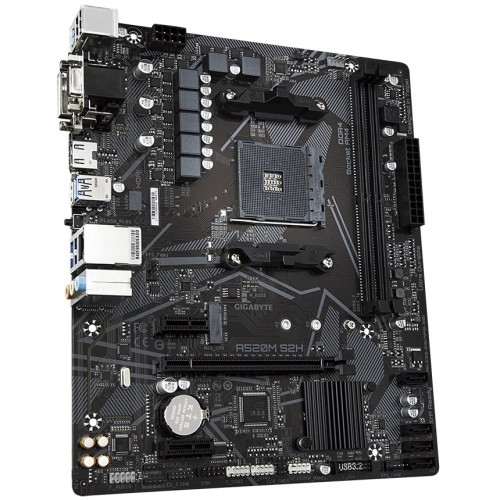

Gigabyte A520M S2H Ultra Durable AMD AM4 ATX Motherboard


  • Model: Gigabyte A520M S2H Ultra Durable
  • AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
  • Smart Fan 5 Features
  • Ultra-Fast NVMe PCIe 3.0 x4 M.2
  • 4+3 Phases Pure Digital VRM Solution

TK 8000

TK 8640

Brand:

Gigabyte

Quantity




Product Details

Basic Information
Supported CPU AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset AMD A520
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 20.5cm
Expansion Slots
PCI CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
2 x PCI Express x1 slots, supporting PCIe 3.0
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Memory
Type Dual channel memory architecture
Slots 2 x DDR4 DIMM
Supported Memory 3rd Gen AMD Ryzen Processors:
Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3rd Gen AMD Ryzen with Radeon Graphics processors:
Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Maximum Memory 64 GB
Graphics
Graphics Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Max Shared Memory 16 GB

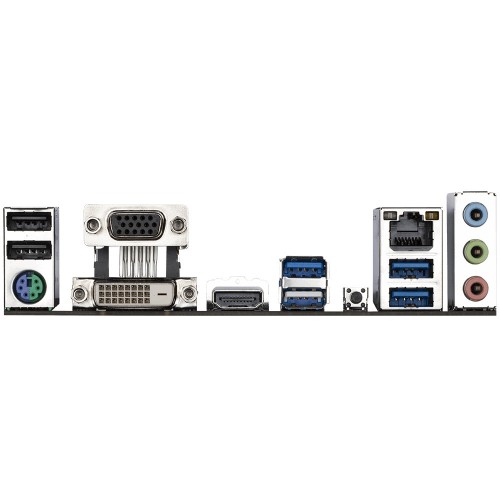

Connector & Ports
HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
D-Sub (s) 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
DVI-D (s) 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
USB (s) CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
Audio Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x speaker header
1 x chassis intrusion header
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Warranty Information
Manufacturing Warranty 03 years
