BXB EDC 2051 Main Control Unit Digital Conference System

SOUND SYSTEM > Conference System

BXB EDC 2051 Main Control Unit Digital Conference System

1. 3-chain outputs for daisy connection; each link can be linked up to 60 units.
2. 4×20 digits LCD screen displays conference mode, microphone’s volume and other conference settings.
3. Multi-Conferencing Operating Modes: (Normal/Chairman/Override)
 MIC auto-off: Microphone turns off automatically when not being used in 30/45 seconds (chairman is not affected).
 OPEN-MIC : Give limit to the quantity of open delegate microphones from 1-9.
4. System auto-testing functions when power is on. When the connection is failed, the red ring of light will flash.

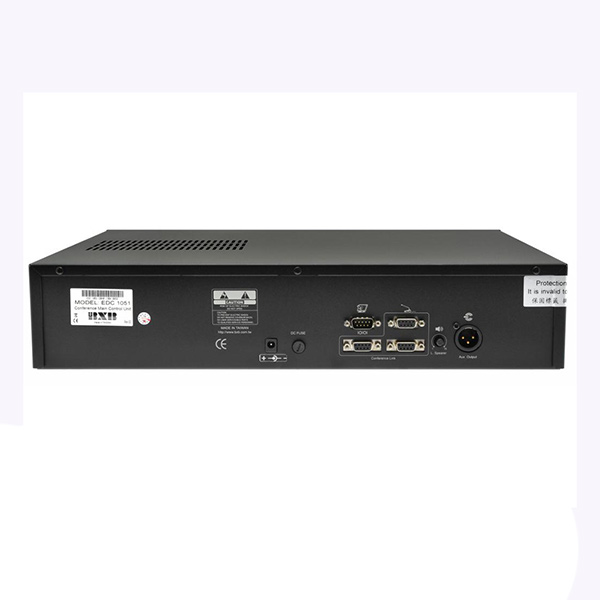

5. Equipped with RS-232 and RS-485 interface on the rear panel, which complies with image auto-tracking system.
6. The volume of microphones is displayed by numbers on the LCD screen. Users can press the button of the control unit to adjust the volume.
7. The equipped XLR plug can connect other recording and audio equipments.
8. Power supply: AC-110V-230V.
9. Frequency response: more than 100Hz~16KHz; total harmonic distortion<0.1%; signal-to-noise ratio: more than 80dB.
10. The control unit conforms with ROHS standard, which is not harmful to users’ health.

TK 35000

Brand:

BXB

Quantity

ADD TO CART

ORDER NOW

Product Details

Frequency response	100HZ~16KHZ
Sensitivity	-60dB
Total Harmonic distortion	≦0.5%
S/N ratio	90dB
Conference microphone connection	D type express port x 3 sets
Power	AC110/250，50/60Hz，Power LED light
Height × Width × Depth	100 × 430 × 230（mm）
Accessory	19″ brackets are included
Surface	Black, against rusty pain
