MSI H310M PRO-VDH Plus Intel 9th Gen Motherboard

Computer Components > Motherboard > MSI (INTEL)

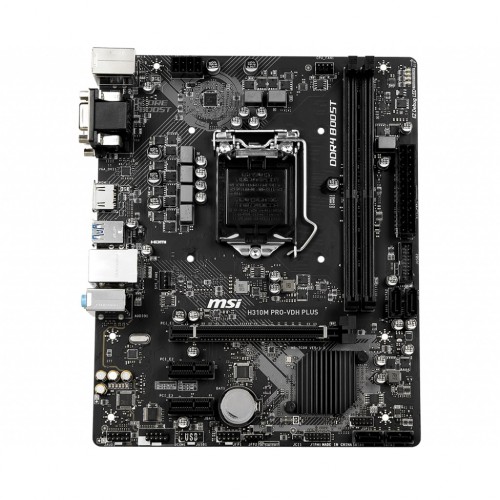

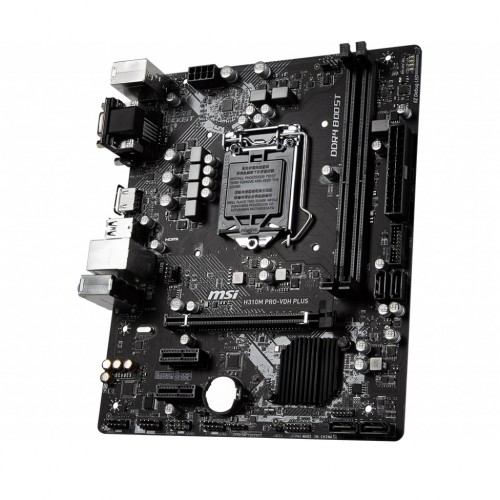

MSI H310M PRO-VDH Plus Intel 9th Gen Motherboard

Model: MSI H310M PRO-VDH Plus Motherboard
Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151
X-Boost & Core Boost
EZ Debug LED: For troubleshoot
Audio Boost: studio grade sound

Available EMI Offer

TK 6200

~~TK 6730~~

Brand:

msi

Quantity

ADD TO CART

ORDER NOW

Product Details

Specification

Basic Information
Supported CPU	Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
Chipset	Intel H310 Chipset
Form Factor	8.9 in. x 7.3 in. (22.6 cm x 18.5 cm) m-ATX Form Factor
Expansion Slots
PCI	1 x PCIe 3.0 x16 slot 2 x PCIe 2.0 x1 slots
Memory
Type	Supports Dual-Channel mode
Slots	2 x DDR4 memory slots
Supported Memory	Supports DDR4 2666/ 2400/ 2133 MHz (by JEDEC) Supports DDR4 2666/ 2400/ 2133 MHz (by XMP OC) Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	32GB
Graphics
Graphics	1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30H

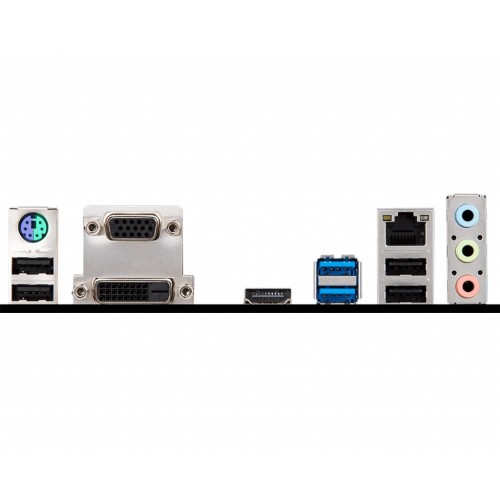

Connector & Ports
HDMI	1 x HDMI port, supports a maximum resolution of 4096x2160@30H
DVI-D (s)	1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
USB (s)	4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
LAN Port (s)	1 x RTL8111H Gigabit LAN controller
Supported Storage	Intel H310 Chipset 4 x SATA 6Gb/s ports Supports Intel® Rapid Storage Technology
Audio	Realtek ALC887/ALC892 Codec 7.1-Channel High Definition Audio
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1 x Clear CMOS jumper 2 x Front panel connectors 1 x Serial port connector 1 x Chassis Intrusion connector 1 x Front panel audio connector 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector
TPM (Trusted Platform Module )	1 x TPM module connector
Warranty Information
Manufacturing Warranty	03 years
