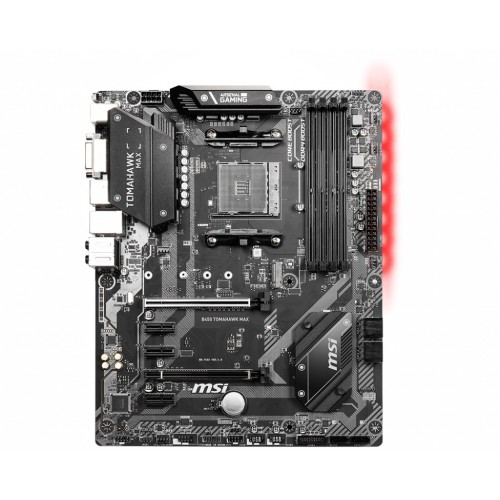

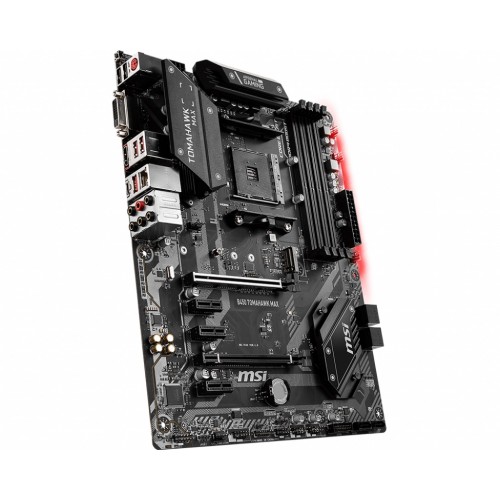

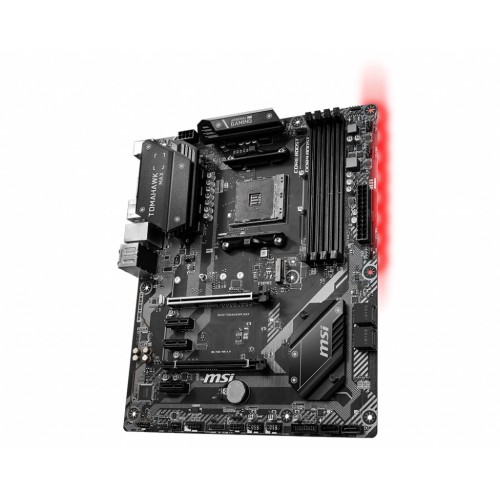

MSI B450 TOMAHAWK MAX AM4 AMD ATX Motherboard

Computer Components > Motherboard > MSI (AMD)

MSI B450 TOMAHAWK MAX AM4 AMD ATX Motherboard

Model: MSI B450 TOMAHAWK MAX
Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen
Lightning Fast Game experience
Extended Heatsink Design
Core Boost, DDR4 Boost, Multi-GPU

TK 11500

~~TK 12260~~

Brand:

msi

Product Details

Basic Information
Supported CPU	Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
Chipset	AMD B450 Chipset
Form Factor	ATX Form Factor
Audio	7.1-Channel High Definition Audio
Expansion Slots
PCI	- 1 x PCIe 3.0 x16 slot (PCI_E1) -1st, 2nd and 3rd Gen AMD Ryzen processors support x16 speed - Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors support x8 speed - 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode) - 3 x PCIe 2.0 x1 slots
M.2 Socket	- 1 x M.2 slot (Key M) - Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s - Supports 2242/ 2260 /2280/ 22110 storage devices
Memory
Type	DDR4
Slots	4 x DDR4 memory slots, support up to 64GB
Supported Memory	- Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) - For AMD Ryzen Gen3 (R5/R7/R9) - Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 4000/ 4133 MHz (by A-XMP OC MODE) - For AMD Other CPU - Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE) - Dual channel memory architecture - Supports non-ECC UDIMM memory - Supports ECC UDIMM memory (non-ECC mode)
Maximum Memory	Maximum shared memory of 2048 MB
Graphics
Graphics	- 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz1,2 - 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz1,2 - Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics processors
Max Shared Memory	- Maximum shared memory of 2048 MB

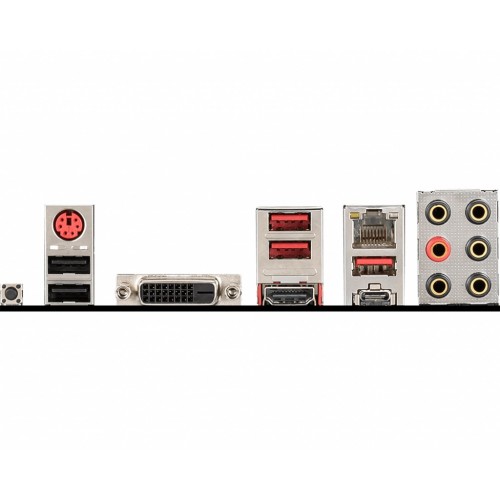

Connector & Ports
HDMI	- 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz
DVI-D (s)	1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz
USB (s)	AMD B450: 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD CPU: 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
LAN Port (s)	- 1 x Realtek 8111H Gigabit LAN controller
Supported Storage	AMD CPU: 2 x SATA 6Gb/s ports1 1 x M.2 slot (Key M)1 Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s Supports 2242/ 2260 /2280/ 22110 storage devices AMD B450: 4 x SATA 6Gb/s ports
Audio	- 7.1-Channel High Definition Audio - HD Audio Connectors - 1 x Front panel audio connector
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump-fan connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Serial Port connector 1 x Clear CMOS jumper 2 x 5050 RGB LED strip 12V connectors
TPM (Trusted Platform Module )	1 x TPM module connector
Warranty Information
Manufacturing Warranty	03 years warranty
