Asus TUF GAMING A520M-PLUS WI-FI AM4 AMD Micro ATX Motherboard

Computer Components > Motherboard > ASUS (AMD)

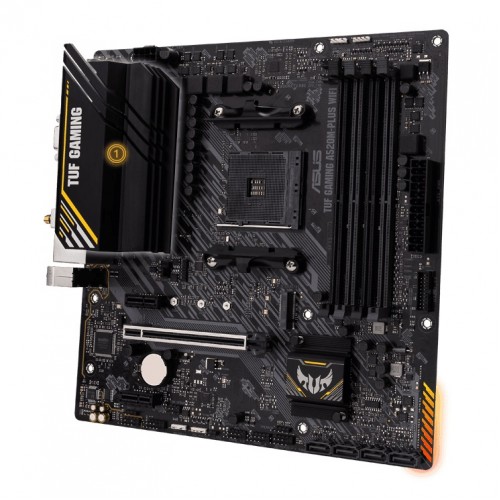

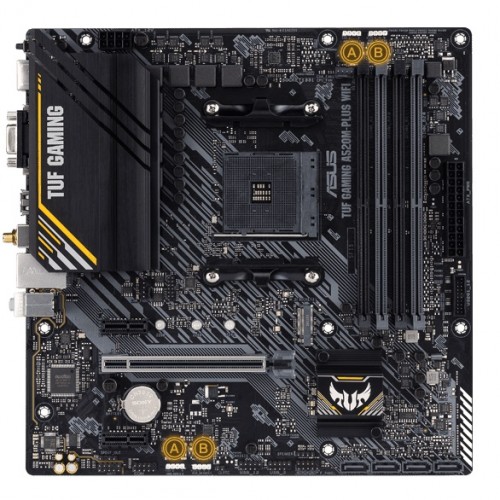

Asus TUF GAMING A520M-PLUS WI-FI AM4 AMD Micro ATX Motherboard

odel: TUF GAMING A520M-PLUS WI-FI
AMD Ryzen 5000/ 4000G/ 3000 Series Desktop Processor
Comprehensive cooling
Ultrafast connectivity
5X Protection III

Available EMI Offer

TK 10300

~~TK 11120~~

Brand:

Asus

Product Details

Basic Information
Supported CPU	AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop
Chipset	AMD A520
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Expansion Slots
PCI	AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 (x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1
M.2 Socket	1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCIE 3.0 x4 and SATA modes) storage devices support
Memory
Type	DDR4
Slots	4 x DIMM
Supported Memory	4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU
Maximum Memory	128GB
Graphics
Graphics	1 x D-Sub 1 x DVI-D 1 x HDMI 2.1(4K@60HZ)

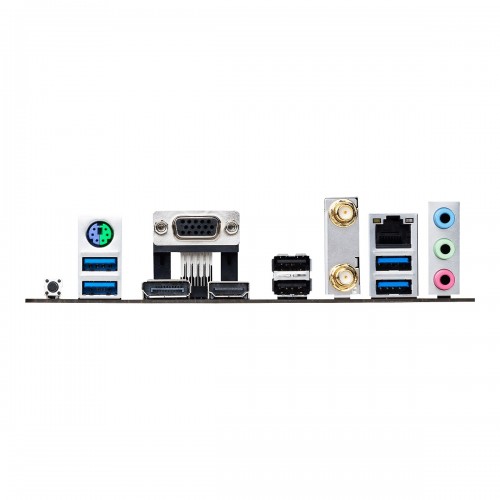

Connector & Ports
HDMI	1 x HDMI 2.1(4K@60HZ)
D-Sub (s)	1 x D-Sub
DVI-D (s)	1 x DVI-D
USB (s)	1 x USB 3.2 Gen 2 port(s)(1 x Type-A) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 5 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 3 x USB 2.0 port(s)(3 x Type-A)
LAN Port (s)	1 x LAN (RJ45) port Realtek L8200A 1Gb Ethernet TUF LANGuard
Supported Storage	AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors : 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCIE 3.0 x4 and SATA modes) storage devices support AMD A520 Chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
Audio	Realtek ALC887/ 897 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors
Internal I/O Ports	1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x Aura RGB Strip Header 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 with E key for Wi-Fi module 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header
TPM (Trusted Platform Module )	1 x SPI TPM header
Warranty Information
Manufacturing Warranty	3 Years
