MSI MPG Z390 9th & 8th Gen Gaming Plus DDR4 ATX Motherboard

Computer Components > Motherboard > MSI (INTEL)

MSI MPG Z390 9th & 8th Gen Gaming Plus DDR4 ATX Motherboard

Model: MSI MPG Z390 Gaming Plus
Supports 9th & 8th Gen Intel Processor LGA 1151 socket
Twin Turbo M.2, Core & Game Boost
Supports DDR4, up to 4400(OC)MHz
Supports Intel CNVi Wi-Fi Module

TK 14000

Brand:

msi

Product Details

Basic Information
Supported CPU	- Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket - CPU (MAX SUPPORT): i9 - SOCKET: LGA 1151 socket
Chipset	Intel Z390 Chipset
BIOS	Before using Intel Optane memory modules, please ensure that updated the drivers and BIOS to the latest version from MSI website.
Form Factor	ATX Form Factor
Audio	7.1-Channel High Definition Audio
Expansion Slots
PCI	- 2 x PCIe 3.0 x16 slots(support x16/x4 mode) - 4 x PCIe 3.0 x1 slots
M.2 Socket	-1 x M.2 slot with E key for Integrated Intel® Wireless-AC(CNVi) module only - 2 x M.2 slot (Key M) - 3x M.2 slots (2 M-Key slots,1 E-Key slot
Memory
Type	DDR4
Slots	4 x DDR4 memory slots
Supported Memory	4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz
Maximum Mamory	support up to 128GB
Graphics
Graphics	- 1 x HDMI™ port, supports a maximum resolution of 4096x2160@24Hz - 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz - 2 x PCIe 3.0 x 16 slots *No Display support when using the Processor model with suffix “F”
Max Shared Memory	MAX MEMORY (GB): 128GB

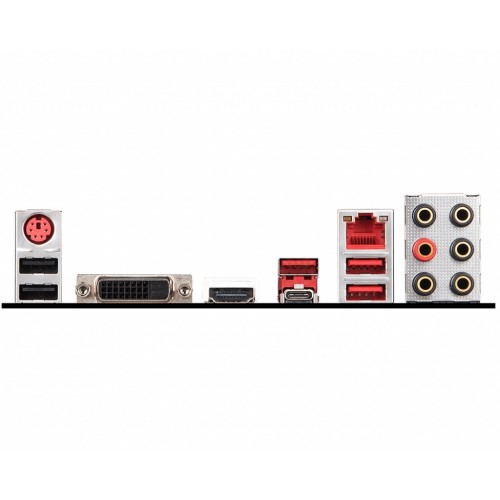

Connector & Ports
HDMI	- 1 x HDMI port, supports a maximum resolution of 4096x2160@24Hz
USB (s)	- 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1x Type-A port and 1x Type-C port) on the back panel - 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.1 connectors) - 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
LAN Port (s)	- 1 x Intel I219-V Gigabit LAN controller
Supported Storage	- 6 x SATA 6Gb/s ports - 2 x M.2 slot (Key M) - M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices - M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices - Intel Optane Memory Ready2
Audio	7.1-Channel High Definition Audio
Internal I/O Ports	Expansion Slots: 2 x PCIe 3.0 x16 4 x PCIe 3.0 x1 USB: 2 x USB 3.1 Gen 1 Header (Supports 4 USB Type-A Ports) 2 x USB 2.0 Header (Supports 4 USB Type-A Ports) Multi-GPU Support: 2-Way AMD CrossFireX Air Cooling: 1 x 4-Pin CPU 5 x 4-Pin System Liquid Cooling: 1 x 4-Pin Pump Power Connectors: 1 x 24-Pin Mainboard 1 x 8-Pin CPU Security: Chassis Intrusion, TPM Module LED Header: 2 x RGB Diagnostics: Clear CMOS Legacy: 1 x Serial
DVI-D (s)	1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
Warranty Information
Manufacturing Warranty	03 years warranty
